MRS-MIDI-III

Magnetic Resonance Sounding (MRS) with Pre-Polarization:

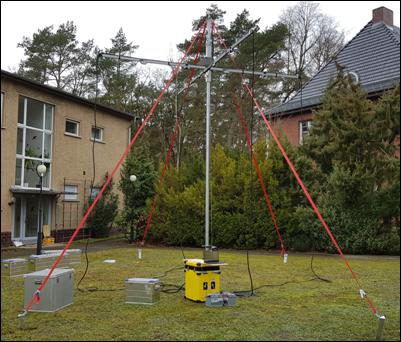

                           The basic field layout



The new MRS-MIDI-III system consists of:

· Rf Transmitter (2 As) and Loop

· Pre-Polarization Transmitter (500 mT) and Loop

· FID Receiver and Loop



Enhancing the signal-to-noise ratio due to pre-polarization:

                                   Without pre-polarization                                                               With pre-polarization

Field example: FID Signal without (left) and with (right) pre-polarization.

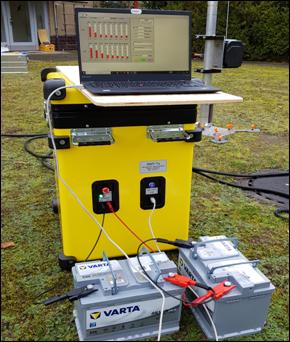

The new compact 2 As Rf Transmitter

with build-in rechargeable LiFePO4 Battery (48 V, 5.5 Ah)
